CDviz Grafana ​

CDviz Grafana provides pre-built dashboards that visualize CDEvents collected by the CDviz Collector. It surfaces DORA metrics, deployment timelines, artifact history, and incident tracking without any manual dashboard configuration.

Online Demo

Explore a live read-only instance of the CDviz Grafana dashboards at demo.cdviz.dev/grafana — no installation required.

NOTE

Dashboards, panels and SQL queries are provided for Grafana, but they can be adapted to your favorite dashboards & analytics system.

Overview ​

CDviz Grafana provides a comprehensive visualization layer for continuous delivery metrics and events:

  • Delivers real-time visualization and monitoring of SDLC data through customized Grafana dashboards and alerts
  • Functions as the primary visualization interface for events (CDEvents) stored in CDviz Database
  • Enables creation of tailored dashboards for specific monitoring requirements
  • Enhances runtime metrics with deployment context (such as component versions)

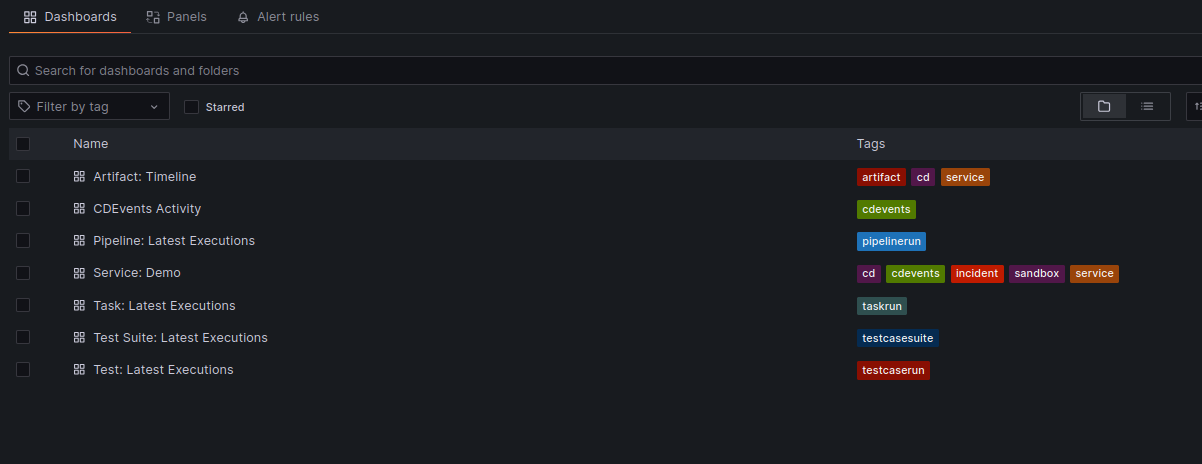

Dashboard overview

Installation ​

Requirements ​

  • Grafana version: 12+
  • Required Grafana Plugins:
    • volkovlabs-echarts-panel (Business Charts)
    • volkovlabs-form-panel (Business Forms)
    • volkovlabs-table-panel (Business Table)
    • cdviz-executiontable-panel (custom unsigned plugin — install from GitHub releases)
  • Database credentials with read access to a CDviz Database instance

Manual Installation ​

  1. Install the required plugins and allow loading unsigned plugins (cdviz-executiontable-panel) via GF_PLUGINS_ALLOW_LOADING_UNSIGNED_PLUGINS=cdviz-executiontable-panel
  2. Create a PostgreSQL datasource in Grafana to connect to the CDviz Database:
    • Type: postgres
    • Name: cdviz-... (the cdviz prefix is used for datasource identification in dashboards)
    • TimescaleDB: enabled
  3. Import dashboards by copying JSON definitions from the CDviz GitHub repository

Available dashboards:

DashboardDescription
Artifact TimelineDeployment and version tracking across environments
Execution PerformancePipeline runs, task executions, and test results
DORA MetricsDeployment frequency, lead time, time to restore, change failure rate
Incidents & TicketsOpen incidents, MTTR, and change cycle time
CDEvents ActivityRaw CDEvent stream and activity overview

Kubernetes Deployment with Helm ​

  1. Configure Grafana according to the requirements specified above

  2. Enable dashboard and datasource provisioning via sidecars:

    Grafana Helm Chart Configuration
    yaml
    # https://grafana.com/docs/grafana/latest/setup-grafana/installation/helm/
#

# Configuration override with environment variables
# https://grafana.com/docs/grafana/latest/setup-grafana/configure-grafana/#override-configuration-with-environment-variables
env:
  # Allow loading unsigned plugins (required for cdviz-executiontable-panel)
  GF_PLUGINS_ALLOW_LOADING_UNSIGNED_PLUGINS: "cdviz-executiontable-panel"
  # Pre-install plugins (Grafana 12+). Format: <id>[@<version>[@<url>]]
  GF_PLUGINS_PREINSTALL_SYNC: "volkovlabs-echarts-panel,volkovlabs-form-panel,volkovlabs-table-panel,[email protected]@https://github.com/cdviz-dev/cdviz-executiontable-panel/releases/download/v1.2.2/cdviz-executiontable-panel-1.2.2.zip"

# Sidecar configuration for dashboard and datasource provisioning
sidecar:
  dashboards:
    enabled: true
    searchNamespace: ALL
    label: grafana_dashboard
    labelValue: "1"
  datasources:
    enabled: true
    searchNamespace: ALL
    label: grafana_datasource
    labelValue: "1"

  3. Configure the datasource either manually or by creating a values.yaml file for the CDviz Grafana chart:

    yaml
    datasources:
  enabled: true
  definitions:
    cdviz-db:
      enabled: true
      type: grafana-postgresql-datasource
      access: proxy
      # Environment variable injection syntax
      url: "$CDVIZ_RO_POSTGRES_HOST:$CDVIZ_RO_POSTGRES_PORT_NUMBER"
      user: "$CDVIZ_RO_POSTGRES_USER"
      secureJsonData:
        password: "$CDVIZ_RO_POSTGRES_PASSWORD"
      jsonData:
        database: "$CDVIZ_RO_POSTGRES_DB"
        sslmode: "require" # Options: disable/require/verify-ca/verify-full
        maxOpenConns: 100
        maxIdleConns: 100
        maxIdleConnsAuto: true
        connMaxLifetime: 14400
        postgresVersion: 1600 # 903=9.3, 1000=10, 1500=15, 1600=16
        timescaledb: true

  4. Deploy using the Helm chart:

    bash
    helm upgrade cdviz-grafana \
     oci://ghcr.io/cdviz-dev/charts/cdviz-grafana \
     --install \
     --create-namespace \
     --namespace cdviz

Contributing ​

Contributions to CDviz Grafana dashboards are welcomed. For new dashboard ideas, panel enhancements, or other improvements, please submit an issue or pull request to our GitHub repository.

Dashboard Design Guidelines ​

  • Include a datasource selection variable (default prefix: cdviz-)
  • Maintain consistent naming conventions with the cdviz- prefix for datasource references
  • Set appropriate default time ranges (e.g., Last 7 days or Last 30 days)
  • Utilize the Grafana Foundation SDK with TypeScript for dashboard generation (see dashboard generator code)
  • Prioritize standard Grafana panels and officially supported plugins listed in the requirements section

License ​

All dashboards, panels, and SQL queries are licensed under the Apache Software License 2.0.
